JWT, Authentication vs Authorization, and RBAC: Securing a Food Factory API

When I started building the backend for my Food Manufacturing Inventory System (FMIS-API), the auth module was the part I kept avoiding. Sessions or tokens? What is a "Bearer" header, actually? And why do people keep writing 401 when they mean 403?

It turns out every one of those questions has a crisp, satisfying answer once you sit down with the actual specs. In this post I'm sharing what I learned while implementing JWT authentication and role-based access control in Go — the exact difference between authentication and authorization, how JWT works at the byte level, how RBAC turns roles into 403s, and the industry practices that separate toy auth from production auth.

The difference that starts it all: Authentication vs Authorization

Most confusion around auth disappears once you separate these two. They happen in a strict order and answer different questions:

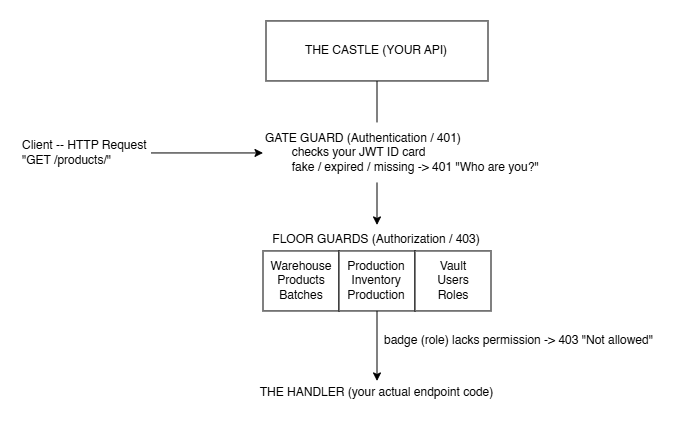

A mental model that stuck with me is a castle. The front gate has a guard who asks "Who are you?" — you show your photo ID (a JWT), he checks the official seal (signature) and the expiry date. Fake, expired, or missing card, and you're turned away at the door. He never asks what you want to do.

Once you're inside, every floor has its own guard who asks "What does your badge allow you to do here?" A Visitor badge can only look. A Worker badge can move crates. A Manager badge can do everything. Badge not allowed here means no entry — even though you got past the gate.

The cheat memory: 401 = "I don't know who you are." 403 = "I know exactly who you are, and you're still not allowed." You can be fully authenticated and still not authorized: a Viewer is logged in (authenticated ✓) but cannot delete products (authorized ✗).

Why HTTP needs credentials on every request

HTTP is stateless. Think of a restaurant waiter with amnesia — ask for water at 7:00 and dessert at 7:30, and he has no idea you're the same person. The server forgets you between requests. There is no built-in "logged in" state, only: a request arrives with a credential attached, and the server checks that credential — every single time.

To recognize repeat customers, the web has two approaches:

FMIS-API uses both — and that's the industry-standard combo: a short-lived stateless JWT (the access token) so the server never needs a DB lookup per request, plus a server-side stored refresh token so you can still revoke sessions.

The credential travels in the Authorization header on every request:

GET /api/v1/products/ HTTP/1.1
Host: api.example.com
Authorization: Bearer eyJhbGciOiJIUzI1NiJ9.eyJ1c2VyX2lkIjoi...2e0Lx2ZIz2

The word Bearer means "whoever holds this token IS the person." It's a magic word the server looks for. Anyone who possesses the token can use it — which is why you protect it like a credit card.

On the server side (Go), reading that header is a one-liner:

// internal/middleware/auth.go — reading the header server-side
header := r.Header.Get("Authorization")
token, ok := strings.CutPrefix(header, "Bearer ")
if !ok || token == "" {
    w.WriteHeader(http.StatusUnauthorized)
    return
}

strings.CutPrefix is Go's way of saying "if the string starts with Bearer , strip it off." ok is false when the header is missing, isn't a Bearer token, or is empty — in every case the server answers 401 before doing anything else.

401 vs 403: the two most confused status codes in existence

• 401 Unauthorized — "I don't know who you are." No token, malformed token, expired token, bad signature. Fix: log in again. Fun fact: the name is historically wrong — it should be "Unauthenticated." But 401 is forever.
• 403 Forbidden — "I know exactly who you are, and you're not allowed." Token is perfectly valid, but your role isn't in the endpoint's allowed set. Fix: ask for a different role. Never retry the same request.

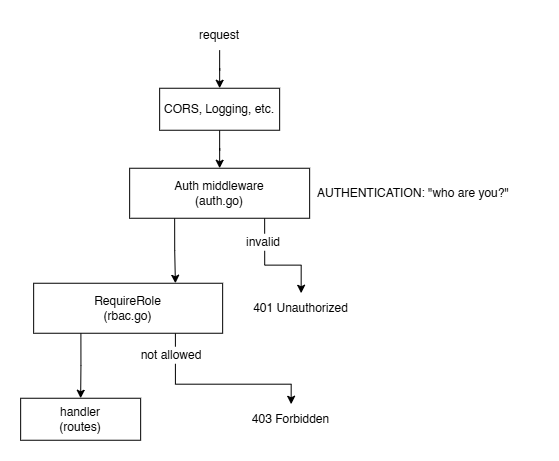

Order matters: the 401 check always runs first. A request can never get a 403 unless it first passed authentication. The request lifecycle looks like this:

Quick scenario check — what status do you get?

• No token at all → 401
• Token expired (15 minutes passed) → 401
• Valid ADMIN token on GET /api/v1/products/ → 200
• Valid VIEWER token on POST /api/v1/products/ → 403
• Token with a tampered payload (signature no longer matches) → 401
• Forged token signed with a wrong secret → 401

Here's the two middlewares in this repo, side by side:

// internal/middleware/auth.go — AUTHENTICATION (answers 401)
func Auth(secret string) func(http.Handler) http.Handler {
    return func(next http.Handler) http.Handler {
        return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
            header := r.Header.Get("Authorization")
            token, ok := strings.CutPrefix(header, "Bearer ")
            if !ok || token == "" {
                w.WriteHeader(http.StatusUnauthorized)
                return
            }
            claims := &Claims{}
            parsed, err := jwt.ParseWithClaims(token, claims,
                func(t *jwt.Token) (any, error) {
                    if _, ok := t.Method.(*jwt.SigningMethodHMAC); !ok {
                        return nil, fmt.Errorf("unexpected signing method: %v", t.Header["alg"])
                    }
                    return []byte(secret), nil
                },
                jwt.WithValidMethods([]string{"HS256"}),
                jwt.WithExpirationRequired(),
            )
            if err != nil || !parsed.Valid {
                w.WriteHeader(http.StatusUnauthorized)
                return
            }
            ctx := context.WithValue(r.Context(), ctxKeyUserID, claims.UserID)
            ctx = context.WithValue(ctx, ctxKeyRole, claims.Role)
            next.ServeHTTP(w, r.WithContext(ctx))
        })
    }
}

Notice what Auth does after verifying: it writes user_id and role into the request context and calls next. From this point on, downstream code (RBAC, handlers, services) can read who you are without re-checking the token.

// internal/middleware/rbac.go — AUTHORIZATION (answers 403)
func RequireRole(allowed ...models.UserRoleType) func(http.Handler) http.Handler {
    set := make(map[models.UserRoleType]struct{}, len(allowed))
    for _, r := range allowed {
        set[r] = struct{}{}
    }
    return func(next http.Handler) http.Handler {
        return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
            role := models.UserRoleType(RoleFromContext(r.Context()))
            if _, ok := set[role]; !ok {
                w.WriteHeader(http.StatusForbidden)
                return
            }
            next.ServeHTTP(w, r)
        })
    }
}

RequireRole reads the role out of the context (written by Auth), converts it to the UserRoleType defined type, and looks it up in the allowed set. Not in the set → 403. This is a pure authorization decision — it never inspects the token itself.

Common mistakes (real bugs people ship):

• Returning 403 for missing tokens — should be 401. Clients treat 403 as "never retry," so a simple expiry silently breaks every screen.
• Hiding buttons instead of enforcing — hiding the Delete button in the UI is not security. Anyone can curl the endpoint. Enforcement must live server-side.
• Inline role checks in 20 handlers (if user.Role != "ADMIN") — drift guaranteed. Middleware centralizes the policy in one place.

JWT — the deep dive

A JWT is a JSON Web Token: a compact, URL-safe string that carries a JSON payload (your claims) and a cryptographic signature proving the payload wasn't tampered with. Think of it as a letter with a wax seal — anyone can open and read it, but nobody can alter it without breaking the seal.

The critical mental model: a JWT is NOT encrypted. The middle part is base64 — trivial to decode. A JWT's security comes entirely from the signature, not from hiding the content. NEVER put a password, secret, or personal data in a JWT.

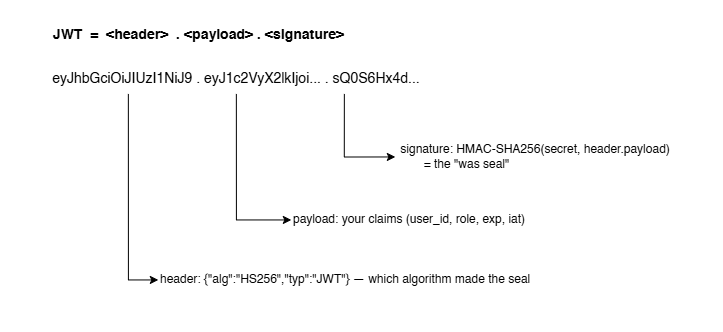

Anatomy: header.payload.signature

Each part is base64url-encoded — base64 with - and _ instead of + and /, and no = padding. That's what makes the token URL-safe (it travels in headers and URLs).

And yes, you can decode the payload right in your browser:

// Decode a JWT payload client-side (NO verification — just base64!)
function decodeJwtPayload(token) {
  const [, payload] = token.split('.');
  const base64 = payload.replace(/-/g, '+').replace(/_/g, '/');
  return JSON.parse(atob(base64));
}

console.log(decodeJwtPayload(access_token));
// { user_id: "d2f9...-uuid", role: "OPERATOR", exp: 1787145012, iat: 1787144112 }

There is no magic — the payload is readable by anyone who has the token. The signature is the ONLY thing stopping someone from editing role to ADMIN and sending it back.

Claims — what we put inside

• Registered claims (standard, defined by RFC 7519): sub (subject — who the token is about), iss (issuer), aud (audience), exp (expiration time), iat (issued at), nbf (not before).
• Public / private claims (your own): anything you want — but keep it small. Our repo stores user_id and role.

// internal/middleware/auth.go — our custom claims
type Claims struct {
    UserID string `json:"user_id"`
    Role   string `json:"role"`
    jwt.RegisteredClaims // embeds exp, iat, sub, etc.
}

Embedding jwt.RegisteredClaims gives us exp, iat, sub, etc. for free — the library knows how to parse and validate them. user_id and role ride along as our own claims.

How HS256 signing works (the math, in plain words)

signature = HMAC-SHA256( secret, "<header>.<payload>" )

  header = {"alg":"HS256","typ":"JWT"}   (base64url-encoded)
  payload = {user_id, role, exp, iat}    (base64url-encoded)

To VERIFY, the server:
  1. splits the token into 3 parts
  2. recomputes HMAC-SHA256(secret, part1.part2)
  3. compares with part3
  match  -> the payload is EXACTLY what the server signed -> trust it
  no match -> someone changed header/payload after signing -> reject (401)

HS256 is symmetric: the same secret signs AND verifies. That means only parties holding the secret can verify — the API server keeps JWT_SECRET private. (RS256, the asymmetric alternative, is what you'd reach for across multiple services.)

Issuing a token

After a successful login or registration, the server signs the claims with the secret and hands the string to the client:

// internal/services/auth.go
func (s *AuthService) issueAccessToken(user *models.User) (string, error) {
    claims := middleware.Claims{
        UserID: user.ID.String(),
        Role:   string(user.Role),
        RegisteredClaims: jwt.RegisteredClaims{
            Subject:   user.ID.String(),
            IssuedAt:  jwt.NewNumericDate(time.Now()),
            ExpiresAt: jwt.NewNumericDate(time.Now().Add(s.accessTTL)), // 15m
        },
    }
    return jwt.NewWithClaims(jwt.SigningMethodHS256, claims).SignedString(s.jwtSecret)
}

The client can't forge its own — it doesn't know the secret. And because JWT is a standard, any JWT library in any language can read any other language's tokens, as long as they share the secret and algorithm. A Node.js client issuing the same token looks like this:

const jwt = require('jsonwebtoken');

function issueAccessToken(user) {
  return jwt.sign(
    { user_id: user.id, role: user.role },  // private claims
    process.env.JWT_SECRET,                  // secret (never commit this!)
    {
      algorithm: 'HS256',
      subject: user.id,
      expiresIn: '15m',                      // exp = now + 15 minutes
    }
  );
}

Why tokens die: exp

The exp claim is a Unix timestamp: "this token stops being valid at this moment." The library checks it during verification. FMIS sets it to 15 minutes. Why 15 minutes? A stolen token is only useful while it's valid — the shorter the lifetime, the smaller the attack window. The cost: users must re-authenticate every 15 minutes... unless we add refresh tokens.

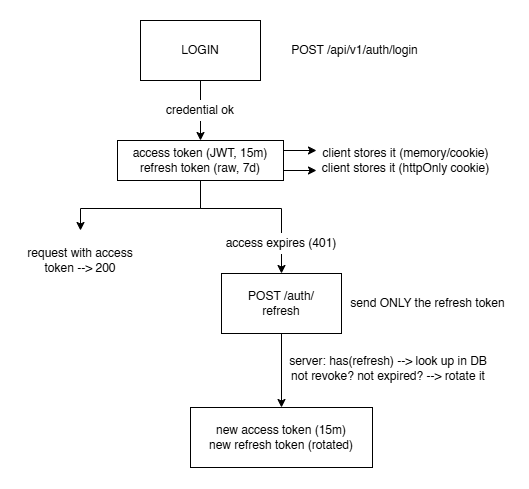

The two-key system: access tokens + refresh tokens

Here's the tension: short tokens are safer but annoying. Long tokens are convenient but dangerous. The industry answer: two tokens.

The flow:

Refresh tokens done the safe way

• Raw token never stored. newRefreshToken() generates 32 random bytes → hex (64 chars). The DB stores only sha256(raw). If the DB leaks, the attacker gets hashes — useless without the raw token. Same logic as bcrypt for passwords (refresh tokens are high-entropy, so plain SHA-256 is enough — unlike passwords).
• Rotation on every refresh: Refresh() revokes the old token and issues a new one inside one transaction. A stolen refresh token is therefore usable at most once before the honest client's next refresh invalidates it (reuse detection).
• Logout = revoke: Logout() flips revoked = true in the DB. The access token still lives its 15 minutes, but no new tokens can be minted.

Storage best practices (where the client keeps tokens)

• Access token → in memory (JS variable) or a short-lived in-memory store. Not localStorage: any XSS can read it.
• Refresh token → HttpOnly + Secure + SameSite=Strict cookie, sent only to /auth/refresh. HttpOnly means JavaScript can't touch it → XSS can't steal it.
• Never in localStorage/sessionStorage for a token that lasts days. One bad innerHTML = account gone.

JWT security pitfalls (each one is a real CVE)

• alg=none: header says {"alg":"none"} and the signature is empty. If the server trusts the header's alg, the attacker signs their own payload by signing nothing. Mitigation: never trust the header — pin algorithms (jwt.WithValidMethods, algorithms: ['HS256']).
• Algorithm confusion (RS256→HS256): the server verifies RS256 with a public key; the attacker re-signs with HS256 using that public key as the "secret." Mitigation: pin the algorithm list and validate the key type.
• Secrets in the payload: remember — the payload is readable base64. Never put passwords, API keys, or PII in a JWT.
• Huge / long-lived tokens: every byte is sent on every request. Keep the payload small; keep exp short.
• No expiry: a token that never dies can't be revoked → permanent access for anyone who ever copies it. jwt.WithExpirationRequired() enforces this.
• Secret rotation ignored: if JWT_SECRET leaks, every token ever issued is forgeable. Store secrets in env/Secrets Manager, rotate periodically, support multiple keys with the kid header claim.
• Token in a URL query string: URLs end up in logs, browser history, and referrers. Header or cookie only.

RBAC — Role-Based Access Control

Now the authorization half. RBAC's insight is that the factory gives you a badge with a color: green = Visitor, blue = Worker, gold = Manager. The color decides what you may do — you don't get a separate rule per person. "Worker can move crates" is written once on the badge; the moment someone gets a blue badge, all crate-moving permissions come with it. Permissions attach to roles, users attach to roles.

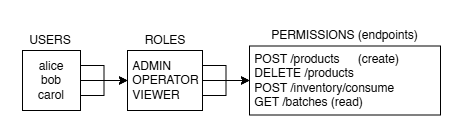

Formally (this is the NIST standard model):

• Users — the accounts calling the API (rows in the users table).
• Roles — named job functions: ADMIN, OPERATOR, VIEWER (the UserRoleType enum in models.go).
• Permissions — the right to do one operation: "create product", "consume inventory", "cancel production".
• Assignments — two relations: user→role (who holds the badge) and role→permission (what the badge allows). Permissions are NEVER granted directly to a user.

In FMIS, the role→permission mapping is the endpoint-role matrix in the design doc: every route carries its allowed roles. The user→role mapping is the role column in the users table — and it's also embedded in the JWT so the middleware never needs a DB hit.

Why roles and not per-user permissions?

• 1,000 users × 20 endpoints = 20,000 direct grants to maintain per-user. With roles: 3 rows of policy + 1,000 assignments.
• Promoting someone = changing one value (role = ADMIN). With per-user grants you'd edit that user's 20 permissions and their self-promotion permission.
• Policy changes are centralized: "OPERATOR may no longer delete batches" = one matrix edit, instant for everyone with that role. Policy and membership are separated — that separation is the entire point of RBAC.

For contrast, here's where RBAC sits next to the other models:

RBAC was the sweet spot for FMIS: three clean roles, a reviewable matrix, and simple reasoning ("which roles may call this route?"). ABAC would have been over-engineering.

The role matrix

And the endpoint annotations come in three shapes: `[ALL]` = any authenticated user (still needs a token! not public), `[ADMIN, OPERATOR]` = either role suffices (an allow-set, not a rank), `[ADMIN]` = privileged / destructive.

• GET /api/v1/products/ → [ALL] — browsing the catalog
• POST /api/v1/products/ → [ADMIN, OPERATOR] — creating products
• PATCH /api/v1/products/{id} / DELETE /api/v1/products/{id} → [ADMIN] — editing/deleting the catalog
• POST /api/v1/inventory/consume → [ADMIN, OPERATOR] — FEFO consumption
• POST /api/v1/production/{id}/cancel → [ADMIN] — cancelling orders (expensive, irreversible)

There is no role hierarchy here — VIEWER is not a mini-OPERATOR. The guard compares against an allow-set, not a rank. That's why RequireRole is variadic.

Wiring the matrix to routes

// internal/routers/... — how the matrix becomes real enforcement
r.Group(func(r chi.Router) {
    r.Use(middleware.Auth(jwtSecret)) // identity for the whole group

    // [ALL] — authenticated, no role guard
    r.Get("/api/v1/products/", listProducts)

    // [ADMIN, OPERATOR]
    r.With(middleware.RequireRole(models.UserRoleTypeAdmin, models.UserRoleTypeOperator)).
        Post("/api/v1/products/", createProduct)

    // [ADMIN] only
    r.With(middleware.RequireRole(models.UserRoleTypeAdmin)).
        Delete("/api/v1/products/{product_id}", deleteProduct)
})

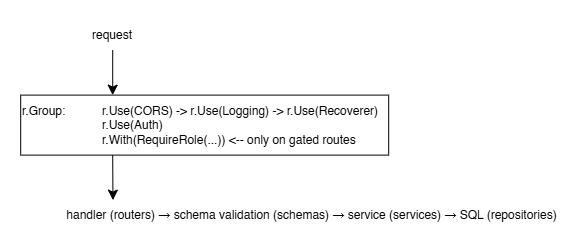

r.With(mw) applies middleware to ONE route; r.Use(mw) applies to the whole group. Every route's annotation from the design doc becomes one visible line of wiring — a reviewer can diff the code against the matrix line by line. A route with no guard is fail-open — the one mistake RBAC can't forgive.

Each middleware is a function that receives the next handler and returns a new handler — they wrap each other like nesting dolls. That's why r.Use order matters and why Auth must be registered before RequireRole:

And on the client, RBAC looks like this — but remember, this is UX, not security:

// React-ish example: hide what the user can't do (UX only!)
const ROLE_ACTION = {
  VIEWER:   { create: false, edit: false, delete: false },
  OPERATOR: { create: true,  edit: false, delete: false },
  ADMIN:    { create: true,  edit: true,  delete: true },
};

function ProductActions({ user }) {
  const actions = ROLE_ACTION[user.role] || {};
  return (
    <div>
      {actions.create && <button>New product</button>}
      {actions.delete && <button>Delete</button>}
    </div>
  );
}

A user can still fetch('DELETE /api/v1/products/x') manually and the server will decide. The UI is a suggestion; the middleware is the law.

The principles RBAC exists to serve

• Least privilege — grant the minimum needed for the job. If a VIEWER account is compromised, the attacker can only read. In FMIS, destructive ops are ADMIN-only.
• Default deny (fail-closed) — unknown role or missing guard → deny. Wrong allow = data loss; wrong deny = one annoyed user. Deny wins.
• Separation of duties — the person who receives a batch (OPERATOR) shouldn't also be the only person who can adjust inventory losses (ADMIN). Roles separate conflicting responsibilities.
• Defense in depth — RBAC is one layer: middleware + validation + transactions + audit logs. Compromise one layer, the others hold.
• Auditability — "who did what" = identity (auth) + permission (RBAC) + the transaction log. Food-safety compliance (HACCP / SOC 2-style) demands this chain.

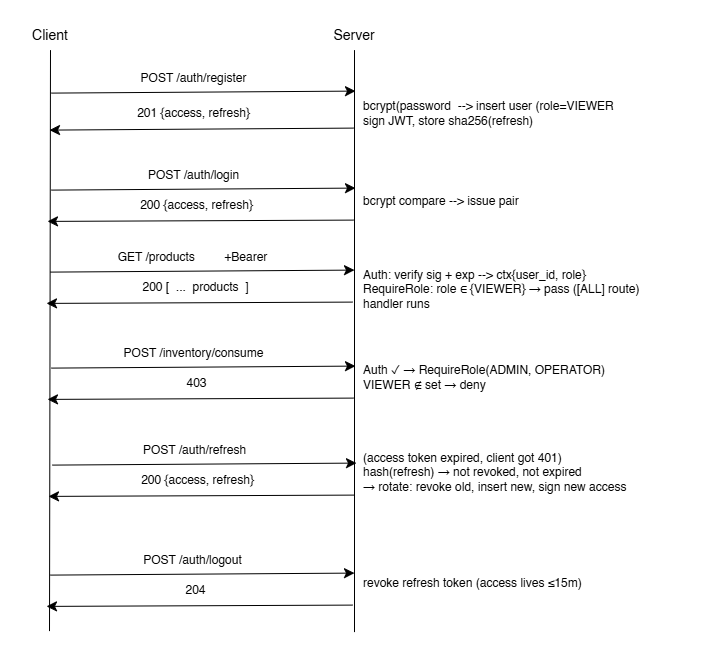

The full auth flow in action

Putting it all together, here's the complete sequence — from the very first registration to a protected call and a logged-out session:

Walking through it with an OPERATOR account:

1. Register → the server bcrypt-hashes the password, inserts the user with role = VIEWER, and returns a token pair. Login does the same after a bcrypt compare.
2. Protected call (GET /products/ with Authorization: Bearer ...) → Auth verifies the signature and exp, then writes {user_id, role} into the request context. RequireRole checks the role against the route's allow-set → 200 with the products.
3. Consume inventory (POST /inventory/consume) as a VIEWER → Auth passes, but RequireRole(ADMIN, OPERATOR) rejects the role → 403. Two different failures, two different statuses, two different client reactions.
4. Refresh — once the 15-minute access token expires and the client gets a 401, it sends only the refresh token to /auth/refresh. The server hashes it, finds it in the DB, checks it isn't revoked or expired, and rotates it in one transaction: revoke the old, insert the new, sign a fresh access token.
5. Logout → the refresh token is marked revoked in the DB. The access token still lives out its 15 minutes, but no new tokens can be minted.

Authentication and authorization never interleave in this flow — the 401 gate physically precedes everything, so an endpoint can't accidentally leak data before identity is established.

Common attacks & mitigations (know your enemy)

Wrapping up

Building the auth module for FMIS-API taught me that the pieces that look mysterious from the outside are refreshingly simple once separated: authentication proves who you are, authorization decides what you may do, a JWT is just a signed envelope (not a vault), and RBAC is a two-row relationship that keeps policy reviewable. The hard part isn't understanding any single piece — it's keeping the 401s and 403s honest, pinning the algorithms, hashing the refresh tokens, and never trusting the client to enforce anything.

If you're implementing auth for the first time, start there: nail the ordering (authenticate before authorize), keep the tokens short, rotate the refresh tokens, and fail closed. Everything else is defense in depth on top of a solid foundation.
